Client: SDP MANUFACTURING SDN BHD
Contact Person: Mr. Sakirin
Address: 32, Jalan Masyhur Satu, Taman Perindustrian Cemerlang ,81800 Johor Bahru, Johor, Malaysia.
Tel: Private
A/C Name: SDP AC 18 ( 2 x 15HP )
Existing Refrigerant Gas: R22 (HCFC)
New Refrigerant Gas: Hydrocarbon Refrigerant R22-a (HC)
Location: Production – Moulding Area
SDP AC 18 (2 x 15HP) |
Descriptions |
Before Replacing HC Refrigerant |
After Replacing HC Refrigerant |
Date & Time of Recording |
Start = 07-31-2009 10:33:22 End = 07-31-2009 17:51:40 |
Start = 08-02-2009 10:14:42 End = 08-02-2009 16:27:30 |
Refrigerant Weight (kg) |
Sys 1 = 3.18kg
Sys 2 = 3.82kg |
Sys 1 = 1.4kg
Sys 2 = 1.48kg |
A/C Temperature Set Point (oC) |
N/A |
N/A |
Outdoor Temperature (oC) while start recording |
32 |
32 |
Air Outlet Temp (Off-Coil) |
22.1 |
19.6 |
Low Side Pressure (PSI) |
Sys 1 = 55 PSI
Sys 2 = 52 PSI |
Sys 1 = 55 PSI
Sys 2 = 56 PSI |
High Side Pressure (PSI) |
Sys 1 = 200 PSI
Sys 2 = 210 PSI |
Sys 1 = 190 PSI
Sys 2 = 200 PSI |
Average hourly Power Consumption (kW) |
21.61 |
14.97 |
Power Saved (kW) |
6.64 |
Operating Hour (Hour(s)) |
24 |
24 |
Operating day |
26 |
26 |
Savings achievement |
(21.61 – 14.97)/ 21.61 *100
30.7% |
Monthly Savings (kWh) |
6.64 x 24 x 26 = 4,143.36kWh |
Energy Savings Verification

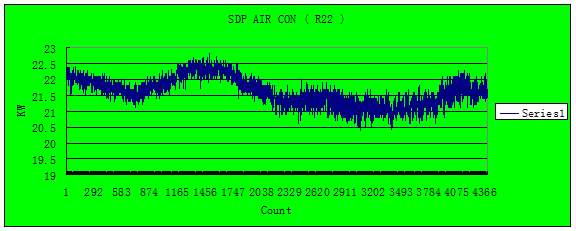

BEFORE Conversion ( refer to excel file named: SDP-AC 18 R22 )
Recording Time: Start = 07-31-2009 10:33:22, End = 07-02-2009 17:51:40 (6 Sec Interval)
Average Power (P1): 21.61 kW
AFTER Conversion ( refer to excel file named: SDP-AC 18 R22a )
Recording Time: Start = 08-02-2009 10:14:42, End = 08-02-2009 16:27:30
Average Power (P2): 14.97 kW |
