• New! Vacuum Shut Off Allowing for Unattended Recovery Operation
• New! Easy-to-Read, Low Vacuum/Tank Full LED
• New! Carrying Strap
• New! Improved Packaging to Protect Knobs and Gauges
• Handles Almost All Refrigerants!
• Labeling on Rear Unit with Directions for Proper Connection
• Capable of Pumping Virigin Refrigerant Without Damaging the Compressor
• Lightweight and Compact
• One Year Over-the-Counter Warranty

• Power Source:

  • 110/120 VAC, 1 Phase, 50/60 Hz, 8 Amps
  • 220 VAC, 1 Phase, 50/60 Hz, 4 Amps
• Compressor: 0.8 HP Highe Performance Oil-less
• Motor: High Torque 0.8 HP
• Vacuum Rating: 15" Hg+
• High Pressure Limit: 550 PSI (37.9 bar)
• Recovery Rate (R-22):

  • Liquid 3.53 lbs/min (1.60 kg/min)
  • Liquid Push-Pull 12.28 lbs/min (5.58 kg/min)
  • Vapor: up to 0.29 lbs/min (0.13 kg/min)
• Auto 80% Tank Full Shut Off: Optional
• Self Purging System: No Hose Changes
• Weight: 24 lbs (11 kg)
• Dimensions: 11"H x 17"L x 9.5"W
• Refrigerants: R-12, R-22, R-114, R-134a, R-401A, R-401B, R-401C, R-402A, R-402B, R-404A, R-406A, R-407A, R-407B, R-407C, R-407D, R-408A, R-409A, R-410A, R-411A, R-411B, R-412A, R-500A, R-502B, R-507, R-509

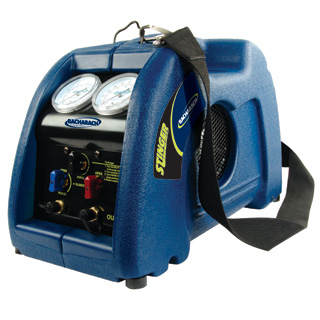

“The Stinger™ has earned the trusted ARI Performance Certified™ seal, an assurance of the product's performance in accordance with ARI Standard 740.”

“Use of the ARI Performance Certified™ mark indicates a manufacturer's participation in the certification program. For verification of certification for individual products, go to www.aridirectory.org.”
