Affordable, State of the Art Portable Combustion Analyzer

The PCA®2 is a commercial grade, handheld combustion and emissions analyzer for sampling of light industrial, institutional, commercial and residential furnaces, boilers and appliances. The PCA®2 is the perfect tool for service technicians and boiler contractors who need to ensure safe operating conditions, determine combustion efficiency, or perform emissions testing in combustion applications.

The PCA®2 directly measures and displays flue gas Oxygen (O2), Carbon Monoxide (CO), Stack Temperature, Draft, Differential Pressure, Combustion Air Temperature and optionally measures and displays Nitric Oxide (NO), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2). Simultaneously, the PCA®2 calculates and displays combustion efficiency (EFF), Excess Air (EA), Carbon Dioxide (CO2), NOx and Oxygen reference values. The PCA®2 performs combustion calculations for ten fuels including, Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse and Digester Gas. The large backlit graphic displays shows eight different measurements and calculated values simultaneously, and also has zoom capabilities.

Product Information

(159K) Data Sheet

(1900K) Instruction Manual - North America

(437K) Quick Reference Guide

(272K) Quick Reference Guide (French)

(290K) Why test? Combustion testing today is no longer an option; it's a necessity. See why electronic combustion testing is a smart, simple and safe alternative.

Features & Benefits

Smart Sensors

Field replaceable

Pre calibrated

Easy access

Quick and accurate response

Measures 4 Gases Simultaneously

Standard - O2, CO-H2

Optional - CO (high), NO, NO2 & SO2

Automatic CO Overrange Protection

Versatile Power Management

Disposable batteries

Rechargeable batteries

Optional universal power supply

Graphic Display

160 x 160 graphic liquid crystal display

Easy to read

Backlit

Zoom

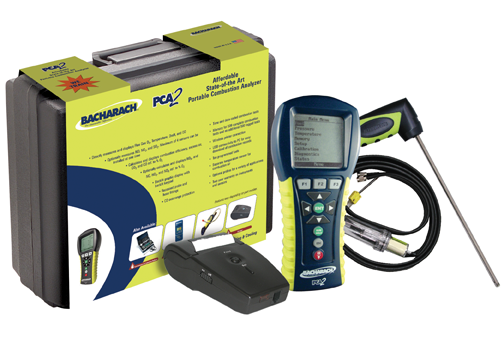

PCA® 2 Reporting Package:

2 Gases (CO and O2) - Part No. 24-8370

4 Gases (CO, O2, NO, NO2,) - Part No. 24-8374

4 Gases (CO, O2, NO, SO2,) - Part No. 24-8375

All reporting packages come with printer USB cable and software

Specifications:

Measurement Ranges Primary/Ambient Air Temperature -4° to 999°F Stack Temperature -4° to 2192°F Oxygen 0 to 20.9% Carbon Monoxide (H2 comp) 0 to 4,000 ppm Carbon Monoxide, high range 4,001 to 20,000 ppm Nitric Oxide 0 to 3,000 ppm Nitrogen Dioxide 0 to 500 ppm Sulfur Dioxide 0 to 5,000 ppm Pressure/Draft -72 to +72 inwc Calculated Ranges Combustion Efficiency 0.1 to 100% Excess Air 1.0 to 250% Carbon Dioxide (dry basis) 0 to fuel dependent maximum NOx (NOx = NO + NO2) 0 to 3,500 ppm NOx referenced to % O2 0 to 9,999 ppm CO referenced to % O2 0 to 9,999 ppm NO referenced to % O2 0 to 9,999 ppm NO2 referenced to % O2 0 to 9,999 ppm SO2 referenced to % O2 0 to 9,999 ppm Accuracy Oxygen ± 0.3% O2 (on flue gas) Stack or Flue Gas Temperature ± 4°F between 32 and 255°F (± 2°C between 0 and 124°C) ± 6°F between 257 and 480°F (± 3°C between 125 and 249°C) ± 8°F between 482 and 752°F (± 4°C between 250 and 400°C) Primary-air/Ambient Temperature ± 2°F between 32 and 212°F (± 1°C between 0 and 100°C) Pressure/Draft ± 2% reading or 0.02 inwc whichever is greater between 0 and ± 10 inwc ± 3% of reading between ± 10 and ± 72 inwc CO ± 5% of reading or ± 10 ppm whichever is greater between 0-2000 ppm CO ± 10% of reading between 2001 to 20,000 ppm NO ± 5% of reading or ± 5 ppm whichever is greater between 0-2000 ppm NO NO2 ± 5% of reading or ± 5 ppm whichever is greater between 0-500 ppm NO2 SO2 ± 5% of reading or ± 10 ppm whichever is greater between 0-2000 ppm SO2

Specifications(Continue)

Memory 500 complete combustion test records Logged Memory 500 complete logged combustion test records Selectable Fuels Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse and Digester Gas Size 9"H x 3"W x 2.5" (22.9 cm x 7.6 cm x 6.3 cm) Weight 1.4 lbs (0.6 kg) Power Source Four disposable AA alkaline batteries or NiMH rechargeable batteries providing 10 hours of continuous operation. Optional AC power adapter Display 160 x 160 (2.5 in x 2.5 in) Graphic Liquid Crystal Display Warm Up Time 60 second total warm up time (sensors are checked and autozeroed during warm up)

Ordering Information

Model Number Part Number Sensor 1 Sensor 2 Sensor 3 Sensor 4 Printer PCA 2 225 24-8350 O2 CO PCA 2 235 24-8351 O2 CO NO PCA 2 245 24-8352 O2 CO CO (high) PCA 2 255 24-8353 O2 CO SO2 PCA 2 265 24-8354 O2 CO NO NO2 PCA 2 275 24-8355 O2 CO NO SO2 PCA 2 225 Kit 24-8370 O2 CO X PCA 2 235 Kit 24-8371 O2 CO NO X PCA 2 245 Kit 24-8372 O2 CO CO (high) X PCA 2 255 Kit 24-8373 O2 CO SO2 X PCA 2 265 Kit 24-8374 O2 CO NO NO2 X PCA 2 275 Kit 24-8375 O2 CO NO SO2 X

Instrument Comes Complete With: Hard Carry Case, Probe and Hose Assembly, Factory Calibrated and Installed Sensors, Instruction Manual, Batteries, USB Cable, PC Software and a 2-Year Warranty.

All instruments can be upgraded to include combinations of CO(high), NO, NO2 and SO2.

placement Parts & Accessories

Part Number Description 24-0788 Replacement O2 sensor 24-0789 Replacement CO sensor 24-0881 Replacement NO sensor 24-0997 Replacement CO sensor (high range) 24-0998 Replacement SO2 sensor 24-1027 Replacement NO2 sensor 24-1395 Smart sensor, CO 24-1397 Smart sensor, CO (high range) 24-1398 Smart sensor, SO2 24-1399 Smart sensor, NO2 24-1401 Smart sensor, NO 204-0020 Battery, NO bias battery 24-7059 Calibration kit (less calibration gas) 24-1400 IrDA Printer with disposable batteries 24-1310 Printer paper, 5 rolls 06-8733 Printer paper, 1 roll 24-3004 Probe assembly 19-3265 Replacement water trap assembly 07-1644 Replacement filter element (pkg of 3) 24-8414 Replacement thermocouple, 12 inch 19-3037 Probe stop 24-1124 Extended hose assembly, 20 ft. 104-1797 Thermocouple, 10 ft. (combustion air temp.) 104-1798 Thermocouple, 1 in. (ambient air temp.) 24-1409 Protective rubber boot 24-1404 AC power adapter 104-4032 USB cable 24-1425 PCA2 Data Recovery Software 21-7006 Tru Spot Smoke Tester
