Residential Combustion Analyzers

The Fyrite® Tech Analyzers offer service technicians the easiest and most affordable way to gain the benefits of electronic-combustion testing.

It used to be that gas and oil fired residential furnaces and appliances could be adequately serviced by conducting visual tests. But with today's highly efficient equipment designed to comply with regulatory, environmental and safety concerns, “eye-balling the flame” is no longer a sufficient way to test.

Based on the winning technology platform of the Fyrite®Pro Analyzers, the Fyrite®Tech offers service technicians an economical means to achieve greater precision than can be obtained with visual tests. From carbon Monoxide testing to oxygen and stack temperature measurement, the Fyrite®Tech lets technicians instantly gather the precise measurements needed to ensure the safe, compliant, and efficient operation of residential fuel-burning appliances and furnaces.

Product Information

(159K) Data Sheet

(1900K) Instruction Manual - North America

(437K) Quick Reference Guide

(272K) Quick Reference Guide (French)

(290K) Why test? Combustion testing today is no longer an option; it's a necessity. See why electronic combustion testing is a smart, simple and safe alternative.

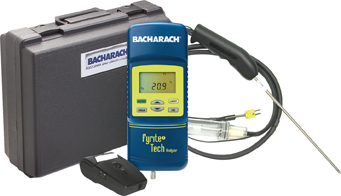

Fyrite® Tech Kit:

Fyrite® Tech Kit - Part No. 24-8326

includes hard carrying case, rubber boot and IrDA printer

Specification

Measured Values:

Flue Gas Oxygen Content 0.0 to 20.9% O2

Flue Gas Temperature 0 to 999°F (-18 to 537°C)

Ambient Temperature 32 to 104°F (0 to 40°C)

Flue Gas Carbon Monoxide Content 0 to 2,000 PPM CO

Calculated Values:

Combustion Efficiency 0.1 to 99.9%

Flue Gas Carbon Dioxide Content 0.0 to a fuel dependent maximum (in%)

Flue Gas CO Air-Free Content 0 to 9,999 ppm

Excess Air 0 to 400%

Selectable Fuels:

Natural Gas

Oil #2

Propane

Kerosene

Power: Four disposable ’AA’ alkaline batteries (included)

Battery Life: Up to 18 hours of continuous operation

Size: 7.5"H x 3.1"W x 2.1"D

Weight: 16 oz. with batteries

Warranty: 2 years, including sensors

Ordering Information

Part Number Description 24-8216 Fyrite®Tech 50, Soft Pouch, Probe, and 4 AA Batteries 24-8217 Fyrite®Tech 60, Soft Pouch, Probe, and 4 AA Batteries 24-8226 Tech 60 Kit: Same features as 24-8217, plus a Hard Carrying Case, and Rubber Boot 24-8227 Tech 60 Starter Kit: Same features as 24-8217, plus a Hard Carrying Case, Rubber Boot, Draftrite, and True Spot Smoke Test Kit 24-8326 Tech 60 Kit w/ Printer: Same features as 24-8217, plus a Hard Carrying Case, Rubber Boot, and an IrDA Wireless Printer

Replacement Parts & Accessories

Part Number Description 24-7265 Replacement CO sensor 24-1127 Protective Boot w/ Magnet 24-0865 Hard Carrying Case 24-7059 Calibration Kit 51-1994 Calibration Gas (100 ppm CO) 24-0492 Calibration Gas (500 ppm CO) 9550-0049 Calibration Gas (100% N2) 24-8106 Oxygen Sensor 24-7265 Carbon Monoxide Sensor 19-7111 Probe & Hose Assembly 24-1267 Soft Carrying Case 19-3265 Water Trap / Filter Assembly 07-1644 Filter Element for Water Trap (pack of 3) 21-7006 True Spot® Smoke Test Kit
