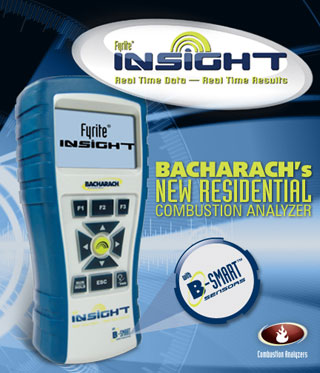

Residential Combustion Analyzer

Combining revolutionary new technology developed by Bacharach engineers, such as software field upgradeability and the B-Smart sensors calibration program; the Fyrite® INSIGHT allows technicians and HVAC/R service representatives the ability to upgrade and calibrate their equipment without having to send it to the manufacturer, saving them from valuable downtime.

This five-in-one steady state combustion analyzer includes: a room air CO test instrument, a flue gas CO tester, dual channel digital thermometer (up to 999ºF), and a digital manometer (which measures draft, gas pressure, ESP, and up to +/- 100 INWC).

Capable of providing up to 100 combustion, pressure, and temperature records, the INSIGHT also can display measurement results for up to eight different fuels on its backlit, custom readout graphic LCD display. In addition, specific information can also be uploaded to a PC or printed version via an infrared printer.

Bacharach's unique smart sensor exchange program will deliver new B-Smart Sensors right to the user. Just a simple "pop out and pop in" replacement of the sensor permits self calibration with no gas or guess work required! Providing the quickest and easiest calibration options to date, the B-Smart Sensors assures accurate performance with no downtime.

Product Information

(8MB) Data Sheet
(624K) Quick Start Guide Operation & Maintenance

Features

Five Tools in ONE! Combustion and efficiency analyzer - (8) different fuels Room air CO test instrument Flue gas CO tester (CO air free) Dual channel digital thermometer (Up to 999°F) Digital manometer (draft, gas pressure, ESP, up to 28 WC") New B-Smart Technology Self calibration Easy access to sensors User Diagnostics 02 and sensor life Calibration reminders Graphic LCD Display Backlight, customizable readout and zoom feature PC Based Software and Reporting package (optional) Customize w/ company logo Upload custom fuels Software updates Test data storage

Benefits

Grow your business Identify opportunities for increased efficiencies Increase repeat business Validate safe operation Provide digital documentation Save Time and Money No downtime due to sensor calibration or replacement Reduce Callbacks PC based updates Simple to use with customizable display and measurement options Experience the highest quality of innovation and reliability Made in the US Uses state of the art technology to measure, analyze and report Improves creditability and confidence for you and your customer

Reporting Package

INSIGHT Basic - Part No. 0024-8250

INSIGHT Product

Instructional DVD

Quick Start User Guide

Protective Boot

PROBE

INSIGHT Reporting Kit - Part No. 0024-8251

INSIGHT Product

Instructional DVD

Protective Boot

PRINTER

USB Cable

PROBE

Software

Time and Date updates

Download test records

Upload 8 custom fuels (use to be 4)

Upload user name

Upload bitmap with YOUR logo

Specification

Measurement Ranges:

Combustion Air/ Ambient Temperature -4 to 600°F (-20 to 316°C)

Flue Gas Temperature -4 to 1200°F (-20 to 649°C)

Oxygen 0.0 to 20.9% O2

Carbon Monoxide 0 to 2,000 PPM CO

Draft/Differential Pressure -100 to +100 in. WC

Calculated Ranges:

Combustion Efficiency 0.1 to 100%

Carbon Dioxide 0.1 to a fuel dependant max. value in percent

Carbon Monoxide (air free) 0 to 9,999 PPM

Excess Air 0 to 250%

Selectable Fuels:

Natural Gas

Oil #2, Oil #4, Oil 6

Propane, Coal, Wood

Kerosene

Power: Four disposable ‘AA’ alkaline batteries (included)

Battery Life: Minimum of 20 hours

Size: 8.0"H x 3.6"W x 2.3"D

Weight: 16 oz. with batteries

Warranty: 2 years, including sensors

Made in the USA - Instructional DVD included!
