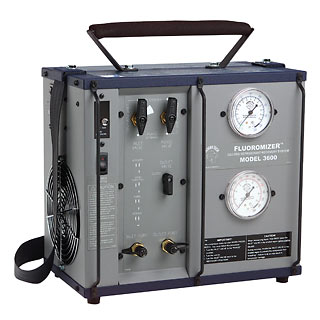

FM3600-410A( Commercial Recovery Machine )

For commercial refrigerant recovery applications, the FM3600-410A can recover vapor at up to 2 pounds per minute and can tolerate liquid directly through its compressor. Its large condenser ensures fast recovery in the hottest environments. A self-purging valve allows the condenser and tubing to purge without hose changes. The suction and discharge gauges and LED status display keeps the technician informed during each recovery step.

Product Information

Features & Benefits

Faster than competitive units
Designed specifically for R-410A
550 PSI high pressure cut-off, high pressure gauges
Proprietary high-performance compressor
Small and lightweight for easy operation
Rugged and reliable
Evacuation complete shut-off

Specifications

Refrigerants: R-410A, R-12, R-134a, R-22, R-500, R-502, MP/HP blends
Power Source: 115 VAC 50/60 Hz, 230 VAC 50/60 Hz,100 VAC 50/60 Hz
Compressor: 0.5 HP high performance, oil-less
Vacuum Rating: 13" Hg+
High Pressure Limit: 550 PSI
Recovery Rate: 0.30-2.0 lbs./min. vapor, 4.0 lbs./min. liquid
Auto 80% Tank Shut-Off: Optional
Self Purging System: No hose changes
Weight: 35 lbs.
Dimensions: 12" x 13" x 7.5"

Ordering Information

Part Number	Description
2000-3600	FM-3600-410A Commercial Recovery Machine
2000-0081	80% Shut Off Option
